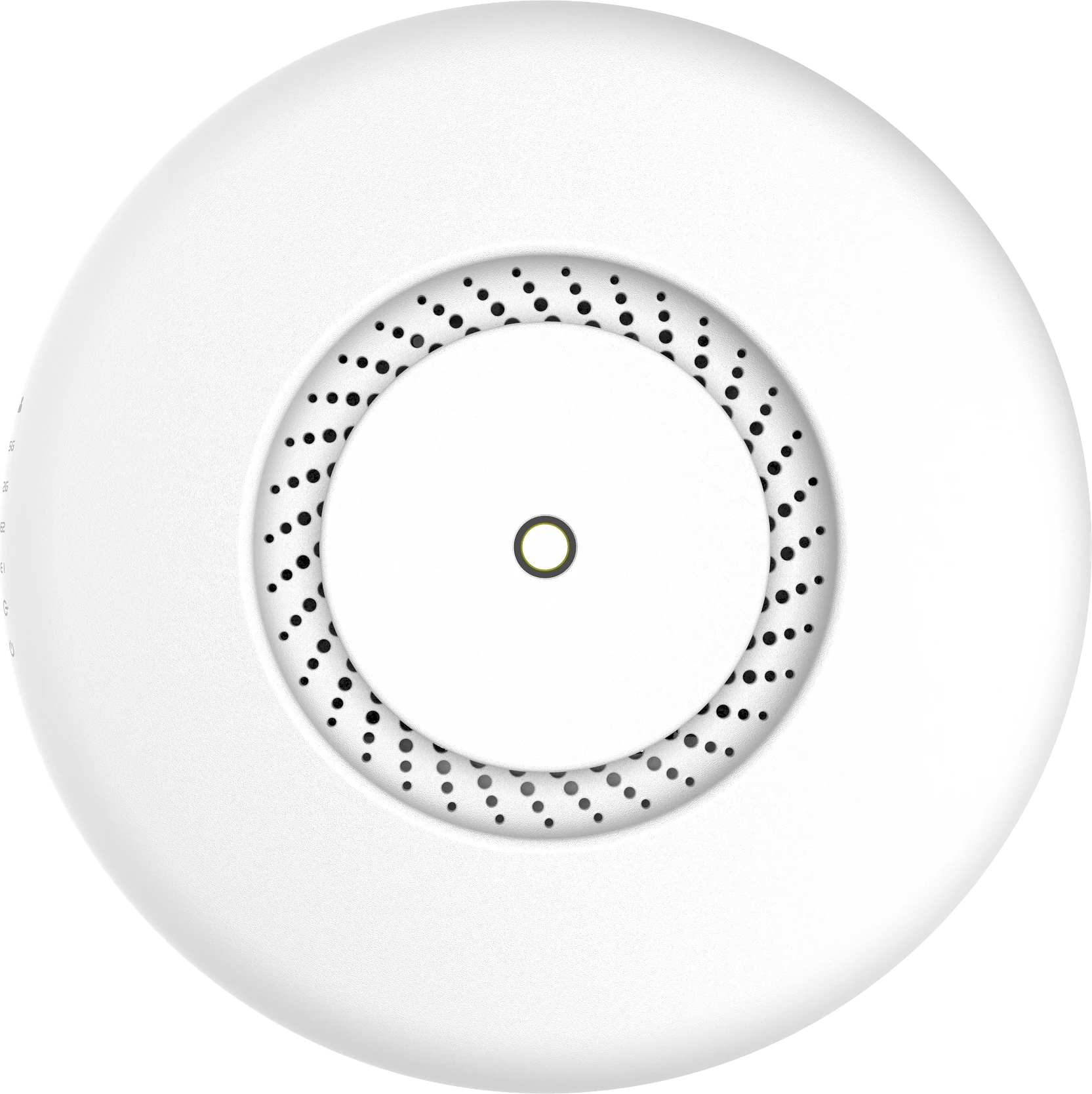

MikroTik ACCESS POINT CAP AC

Specifications

Details Product code RBcAPGi-5acD2nD Architecture ARM 32bit CPU IPQ-4018 CPU core count 4 CPU nominal frequency 716 MHz Switch chip model IPQ-4018 Dimensions Round case: ⌀ 136 mm, height: 30 mm; Square case: 145 mm x 145 mm x 30 mm RouterOS license 4 Operating System RouterOS Size of RAM 128 MB Storage size 16 MB Storage type FLASH MTBF Approximately 100'000 hours at 25C Tested ambient temperature -40°C to 50°C IPsec hardware acceleration Yes Suggested price $85.00 Wireless capabilities

Details Wireless 2.4 GHz Max data rate 300 Mbit/s Wireless 2.4 GHz number of chains 2 Wireless 2.4 GHz standards 802.11b/g/n Antenna gain dBi for 2.4 GHz 2 Wireless 2.4 GHz chip model IPQ-4018 Wireless 2.4 GHz generation Wi-Fi 4 Wireless 5 GHz Max data rate 867 Mbit/s Wireless 5 GHz number of chains 2 Wireless 5 GHz standards 802.11a/n/ac Antenna gain dBi for 5 GHz 2.5 Wireless 5 GHz chip model IPQ-4018 Wireless 5 GHz generation Wi-Fi 5 WiFi speed AC1200 Ethernet

Details 10/100/1000 Ethernet ports 2 Powering

Details Number of DC inputs 1 (PoE-IN) Max power consumption 24 W Max power consumption without attachments 13 W Cooling type Passive PoE in 802.3af/at PoE in input Voltage 17-57 V PoE-out

Details PoE-out ports Ether2 PoE out Passive PoE up to 57V Max out per port output (input 18-30 V) 500 mA Max out per port output (input 30-57 V) 400 mA Max total out (A) 500 mA Certification & Approvals

Details Certification CE, FCC, IC, EAC, ROHS Other

Details Mode button Yes Wireless specifications

2.4 GHz Transmit (dBm) Receive Sensitivity 1MBit/s 26 -100 11MBit/s 26 -94 6MBit/s 26 -96 54MBit/s 23 -78 MCS0 26 -96 MCS7 22 -73 5 GHz Transmit (dBm) Receive Sensitivity 6MBit/s 26 -96 54MBit/s 21 -80 MCS0 26 -96 MCS7 20 -75 MCS9 18 -70
