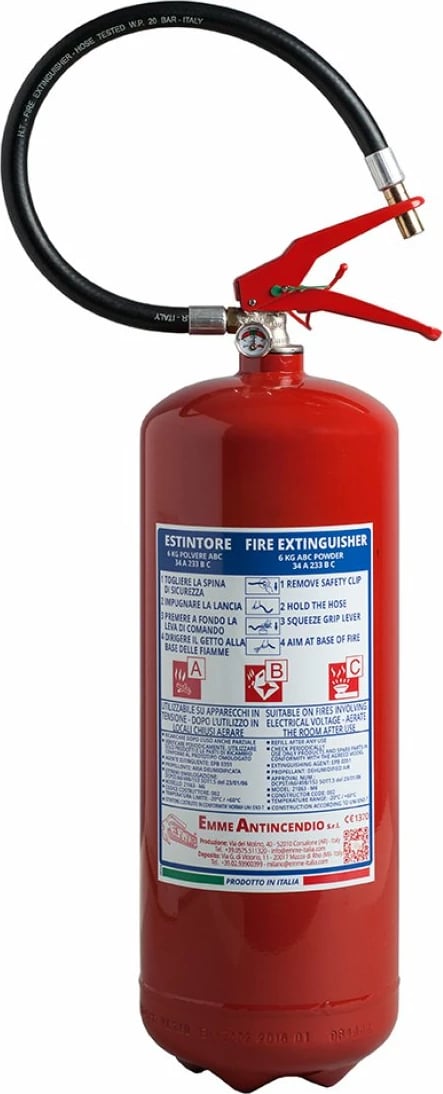

Aparat zjarrfikes me pluhur ABC, 6kg

DRY POWDER PORTABLE FIRE EXTINGUISHER KG 6 - M6 - MODEL 21063 - UNI EN 3-7 - 34 A 233 B C

Approved/Certified by :

Fire rating : 34 A 233 B C

- 6 Kg powder fire extinguisher, temperature range from -30°C to +60°C, manufactured in accordance to EN 3-7, approved to European Marine Directive MED 2014/90/EU, S.O.L.A.S. (Safety of life at sea) ‘74 (2000), certified according to the directive for pressure equipment PED 2014/68/EU. Manufactured according at productions checks as agreed with EN 3-10.

- Quality Product certification guaranteed by Bureau Veritas Italia.

- Suitable for use on fire involving electrical voltages up to 1. 000 V, at a distance of 1 mt.

Characteristics :

• CYLINDER: Alloy steel, deep drawing, epoxypolyestere powder painting, Red Ral 3000
•  EXTINGUISHING AGENT: ABC Powder - MAP 40 %.
•  PROPELLANT : Dehumidified air or N2 .
•  VALVE: M. 30x1.5, brass body, levers with red painting Ral 3000.
•  USE: A B C fire rating (solid materials, flammable liquids, flammable gas).

Technical specifications :

• FIRE RATING: 34 A 183 B C
• EXTINGUISHING AGENT: EPB 0351 (ABC Favorit 111) - ABC powder - MAP 40 %
• PROPELLANT: Dehumidified air or N2 ,15 Bar at 20°C
• TEMPERATURE RANGE: -30°C / +60°C
• NOMINAL CHARGE: 6 Kg
• FULL WEIGHT: ~ 9,4 Kg
• DIMENSIONS: Height 540 mm - Diameter 160 mm
• DISCHARGE TIME: 18 sec.
• VALVE TIGHTENING TORQUE: Minimum 45 Nm, Maximum 68 Nm
• CYLINDER PRESSURE TEST: PT 27 bar
• CYLINDER VOLUME: 7,8 L.
• SAFETY VALVE: Set between 20 and 26 bar
• CYLINDER MATERIAL: Alloy steel
• EXTERNAL/INTERNAL TREATMENT: Sandblast and epoxypolyestere powder painting, Red Ral 3000 colour.
