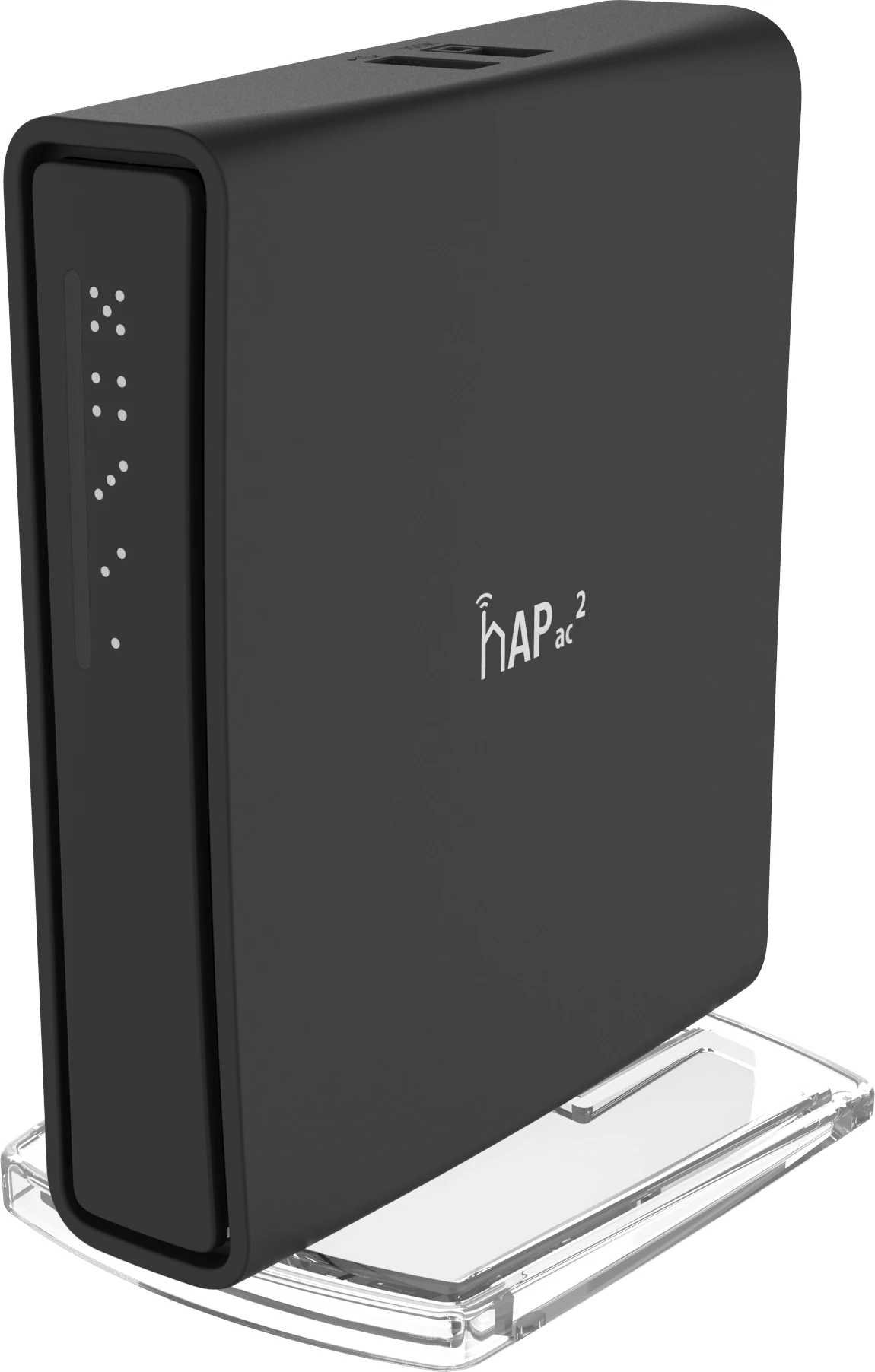

MikroTik HAP AC2MikroTik hAP ac2 WiFi 5 Gigabit Router with 5 GbE ports | RBD52G-5HacD2HnD-TC

Specifications

Details Product code RBD52G-5HacD2HnD-TC Architecture ARM 32bit CPU IPQ-4018 CPU core count 4 CPU nominal frequency 716 MHz Switch chip model IPQ-4018 Dimensions 34 x 119 x 98mm RouterOS license 4 Operating System RouterOS Size of RAM 128 MB Storage size 16 MB Storage type FLASH MTBF Approximately 100'000 hours at 25C Tested ambient temperature -40°C to 50°C IPsec hardware acceleration Yes Wireless capabilities

Details Wireless 2.4 GHz Max data rate 300 Mbit/s Wireless 2.4 GHz number of chains 2 Wireless 2.4 GHz standards 802.11b/g/n Antenna gain dBi for 2.4 GHz 2.5 Wireless 2.4 GHz chip model IPQ-4018 Wireless 2.4 GHz generation Wi-Fi 4 Wireless 5 GHz Max data rate 867 Mbit/s Wireless 5 GHz number of chains 2 Wireless 5 GHz standards 802.11a/n/ac Antenna gain dBi for 5 GHz 2.5 Wireless 5 GHz chip model IPQ-4018 Wireless 5 GHz generation Wi-Fi 5 WiFi speed AC1200 Ethernet

Details 10/100/1000 Ethernet ports 5 Peripherals

Details Number of USB ports 1 USB Power Reset Yes USB slot type USB type A Max USB current (A) 1 Powering

Details Number of DC inputs 2 (DC jack, PoE-IN) DC jack input Voltage 12-30 V Max power consumption 21 W Max power consumption without attachments 16 W Cooling type Passive PoE in Passive PoE PoE in input Voltage 18-28 V Certification & Approvals

Details Certification CE, FCC, IC, EAC, ROHS IP IP20 Other

Details Mode button Yes Wireless specifications

2.4 GHz Transmit (dBm) Receive Sensitivity 1MBit/s 27 -100 11MBit/s 27 -94 6MBit/s 27 -96 54MBit/s 24 -78 MCS0 27 -96 MCS7 23 -73 5 GHz Transmit (dBm) Receive Sensitivity 6MBit/s 26 -96 54MBit/s 22 -80 MCS0 26 -96 MCS7 21 -75 MCS9 19 -70
