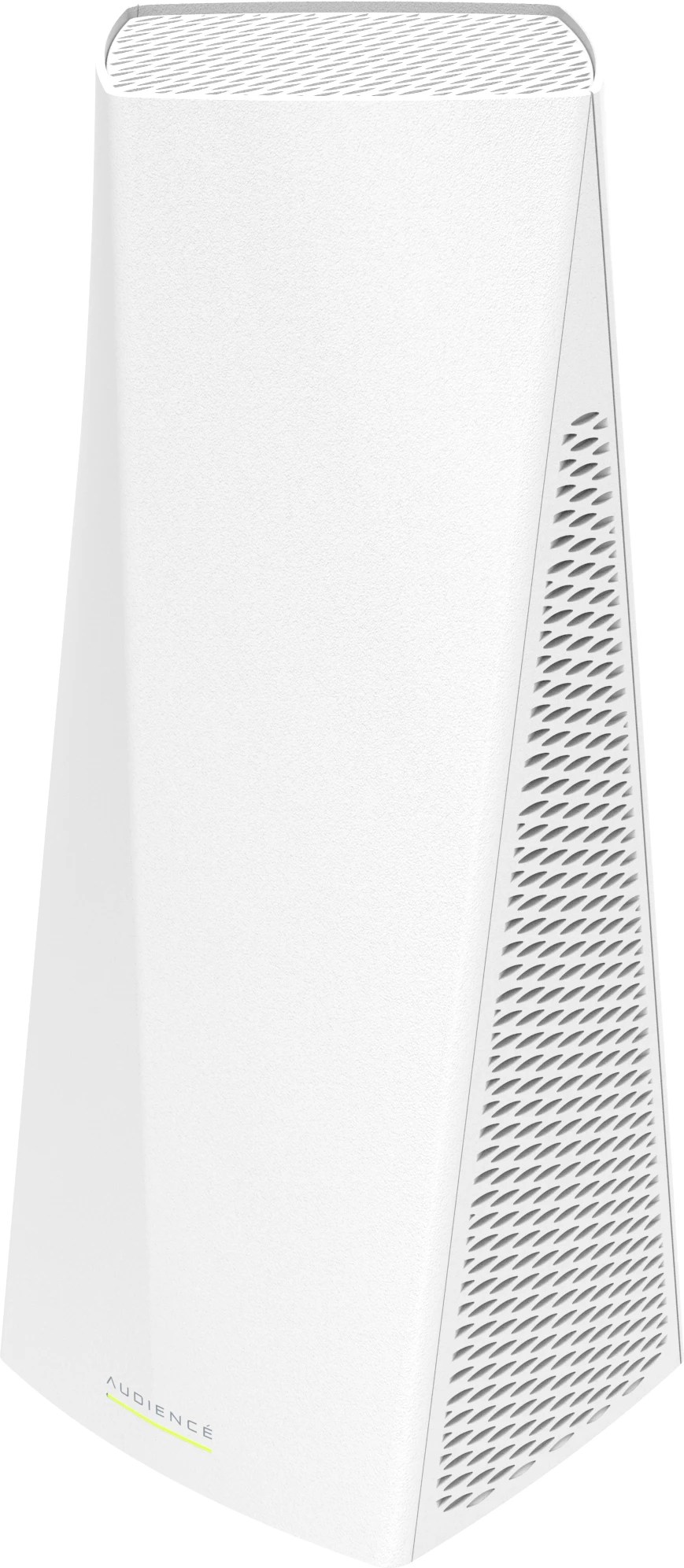

MikroTik Audience | WiFi Router | RBD25G-5HPacQD2HPnD, Tri Band, Mesh, 2x RJ45 1000Mb/s

Specifications

Details Product code RBD25G-5HPacQD2HPnD Architecture ARM 32bit CPU IPQ-4019 CPU core count 4 CPU nominal frequency 716 MHz Switch chip model IPQ-4019 Dimensions 100 x 235 x 97 mm RouterOS license 4 Operating System RouterOS Size of RAM 256 MB Storage size 128 MB Storage type NAND MTBF Approximately 200'000 hours at 25C Tested ambient temperature -40°C to 60°C IPsec hardware acceleration Yes Suggested price $169.00 Wireless capabilities

Details Wireless 2.4 GHz Max data rate 300 Mbit/s Wireless 2.4 GHz number of chains 2 Wireless 2.4 GHz standards 802.11b/g/n Antenna gain dBi for 2.4 GHz 3.5 Wireless 2.4 GHz chip model IPQ-4019 Wireless 2.4 GHz generation Wi-Fi 4 Wireless 5 GHz Max data rate 867 Mbit/s Wireless 5 GHz number of chains 2 Wireless 5 GHz standards 802.11a/n/ac Antenna gain dBi for 5 GHz 4.5 Wireless 5 GHz chip model IPQ-4019 Wireless 5 GHz generation Wi-Fi 5 Wireless 5 GHz Max data rate 1733 Mbit/s Wireless 5 GHz number of chains 4 Wireless 5 GHz standards 802.11a/n/ac Antenna gain dBi for 5 GHz 4.5 Wireless 5 GHz chip model QCA9984 Wireless 5 GHz generation Wi-Fi 5 Ethernet

Details 10/100/1000 Ethernet ports 2 Powering

Details Number of DC inputs 2 (DC jack, PoE-IN) DC jack input Voltage 12-57 V Max power consumption 27 W Max power consumption without attachments 27 W Cooling type Passive PoE in Passive PoE PoE in input Voltage 24-57 V Certification & Approvals

Details Certification CE, FCC, IC, EAC, ROHS IP IP20 Wireless specifications

2.4 GHz Transmit (dBm) Receive Sensitivity 1MBit/s 26 -100 11MBit/s 26 -94 6MBit/s 29 -96 54MBit/s 26 -80 MCS0 29 -96 MCS7 25 -75 5 GHz Transmit (dBm) Receive Sensitivity 6MBit/s 28 -95 54MBit/s 25 -78 MCS0 28 -95 MCS7 24 -75 MCS9 22 -70 5 GHz Transmit (dBm) Receive Sensitivity 6MBit/s 32 -96 54MBit/s 28 -80 MCS0 32 -96 MCS7 27 -77 MCS9 25 -72
