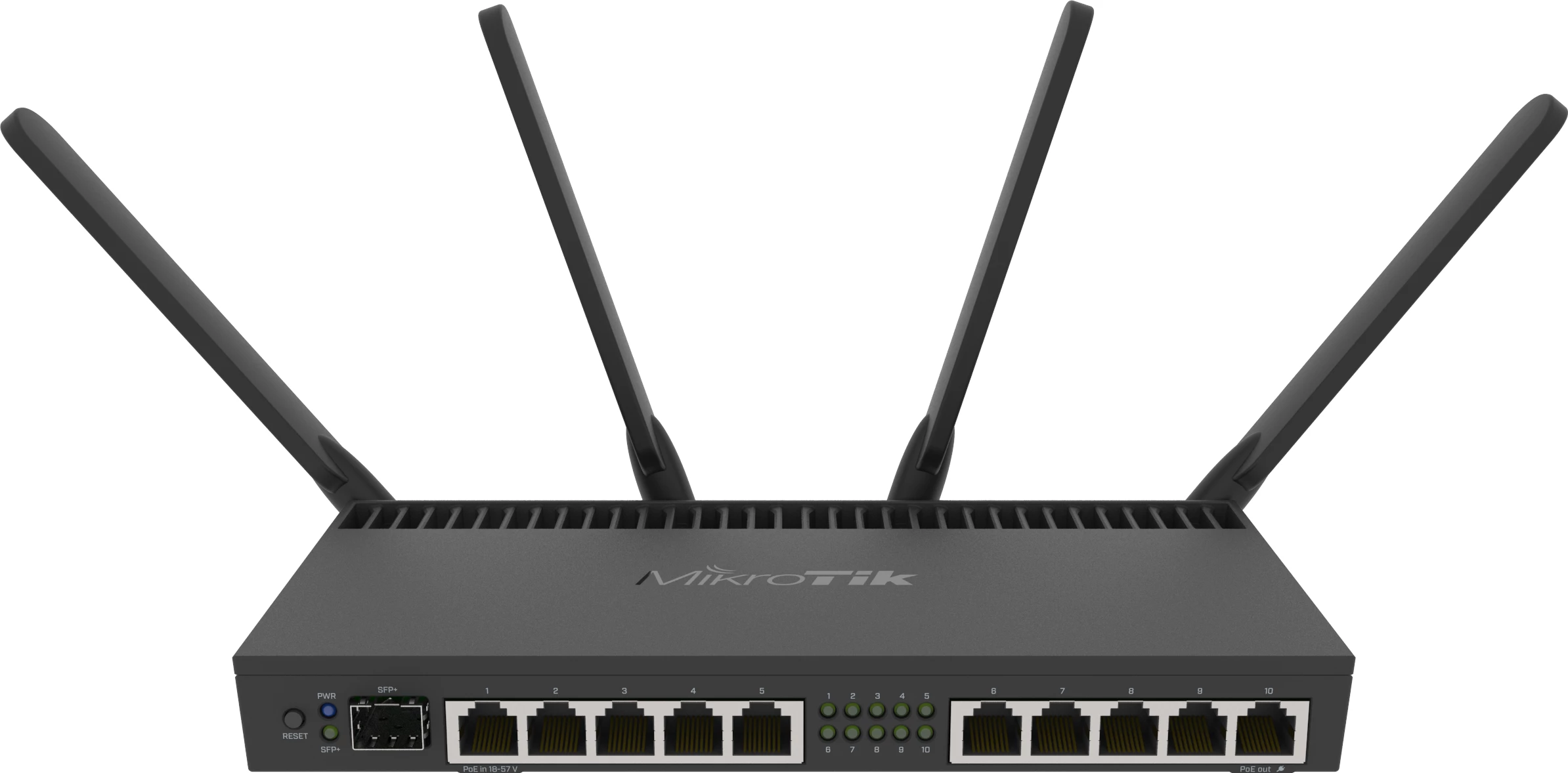

MikroTIk RB4011IGS+5HACQ2HND

Specifications

Details Product code RB4011iGS+5HacQ2HnD-IN Architecture ARM 32bit CPU AL21400 CPU core count 4 CPU nominal frequency auto (533 - 1900) MHz Switch chip model RTL8367SB Dimensions 228 x 120 x 30 mm RouterOS license 5 Operating System RouterOS v7 Size of RAM 1 GB Storage size 512 MB Storage type NAND MTBF Approximately 200'000 hours at 25C Tested ambient temperature -40°C to 45°C IPsec hardware acceleration Yes Suggested price $275.00 Wireless capabilities

Details Wireless 5 GHz Max data rate 1733 Mbit/s Wireless 5 GHz number of chains 4 Wireless 5 GHz standards 802.11a/n/ac Antenna gain dBi for 5 GHz 3 Wireless 5 GHz chip model QCA9984 Wireless 5 GHz generation Wi-Fi 5 Wireless 2.4 GHz Max data rate 300 Mbit/s Wireless 2.4 GHz number of chains 2 Wireless 2.4 GHz standards 802.11b/g/n Antenna gain dBi for 2.4 GHz 3 Wireless 2.4 GHz chip model R11e-2HnD Wireless 2.4 GHz generation Wi-Fi 4 WiFi speed AC2000 Ethernet

Details 10/100/1000 Ethernet ports 10 Fiber

Details SFP+ ports 1 Peripherals

Details MiniPCI-e slots 1 Serial console port RJ45 Powering

Details Number of DC inputs 2 (DC jack, PoE-IN) DC jack input Voltage 12-57 V Max power consumption 44 W Max power consumption without attachments 23 W Cooling type Passive PoE in Passive PoE PoE in input Voltage 18-57 V PoE-out

Details PoE-out ports Ether10 PoE out Passive PoE up to 57V Max out per port output (input 18-30 V) 600 mA Max out per port output (input 30-57 V) 420 mA Max total out (A) 600 mA Certification & Approvals

Details Certification CE, FCC, IC, EAC, ROHS IP IP20 Other

Details PCB temperature monitor Yes Voltage Monitor Yes Wireless specifications

5 GHz Transmit (dBm) Receive Sensitivity 6MBit/s 33 -96 54MBit/s 29 -81 MCS0 33 -96 MCS7 28 -77 MCS9 26 -72 2.4 GHz Transmit (dBm) Receive Sensitivity 1MBit/s 28 -100 11MBit/s 28 -94 6MBit/s 29 -96 54MBit/s 25 -80 MCS0 26 -96 MCS7 24 -79
