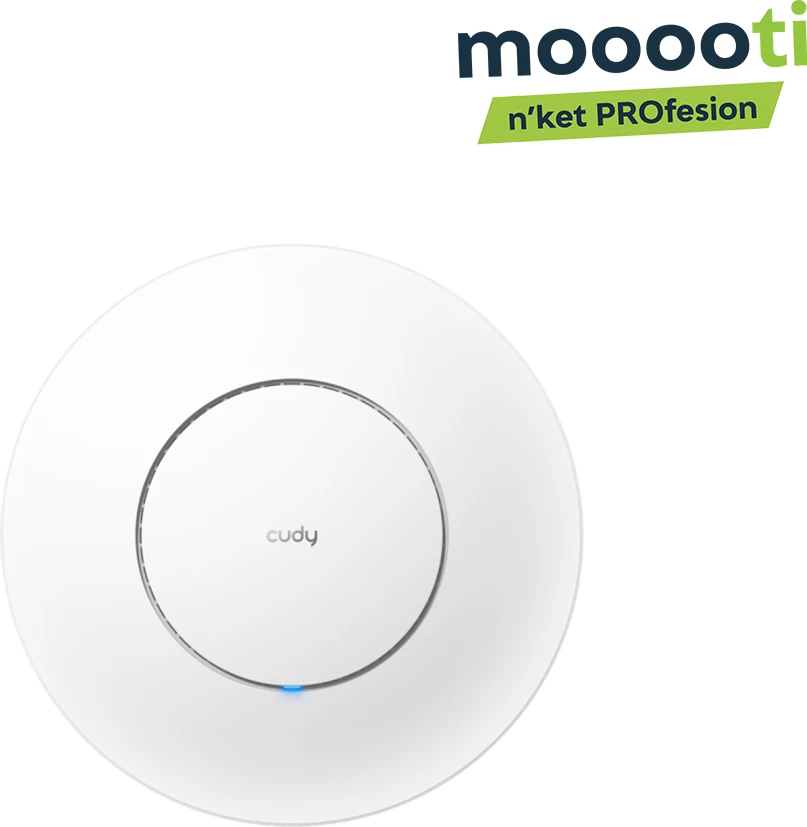

AC1200 Gigabit Wireless Access Point with PoE Adapter

Specifications

Hardware Features Highlights CPU: 880 MHz Dual-Core Processor Flash: 16 MB (128 Mbit) DDR: 128 MB (1 Gbit) Interface 1× Gigabit Ethernet Port (PoE In) 1× Reset Button 1× DC Jack Power Supply 802.3af/at PoE 24-57 V Passive PoE (+4,5pins; -7,8pins) 12 V ⎓ 1A DC Power Consumption Idle: 4 W PoE Max: 11 W

DC Max: 7.5 W

Dimensions ( W×D×H ) 232×232×57.1mm Antenna Type 4× Internal Omni-directional Antennas Mounting Ceiling/Wall Mounting (Kit included) Wireless Function Wireless Standards Wi-Fi 5 (802.11ac/n/g/b/a) Frequency 2.4 GHz and 5 GHz Signal Rate 5 GHz: Up to 867 Mbps 2.4 GHz: Up to 300 Mbps Channel Width 20/40/80 MHz Wireless Functions

(Features with * require a Cudy AC as the gateway, Cudy AC is coming soon in late 2023)

(Features with △ require a Cudy Mesh unit/Mesh router or AC as the gateway with firmware newer than 15.28)

Multiple SSID* Captive Portal* Seamless Roaming Mesh△ Self-Organizing Mesh△ Band Steering* Auto Channel Optimization* Enable/Disable Wireless Radio Transmit Power Control QoS (WMM) MU-MIMO Beamforming Rate Limit Reboot Schedule Wireless Schedule Wireless Encryption WPA-PSK WPA2-PSK WPA-PSK/WPA2-PSK Security

(Features with * require a Cudy AC as the gateway, Cudy AC is coming soon in late 2023)

IP/MAC Filtering AP Isolation* Operating Modes Wireless Access Point Mode Wireless Router Mode Wireless Extender Mode WISP Mode Package Content Access Point DC Adapter Mounting Kit Installation Guide Environments Operating Temperature: 0~40 °C (32~104 °F) Storage Temperature: -40~70 °C (-40~158 °F) Operating Humidity: 10~90% RH non-condensing Storage Humidity: 5~90% RH non-condensing System Requirements Windows, MAC OS, NetWare, UNIX, or Linux Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other Javascript-enabled browser A fiber/cable/DSL Modem, or other devices providing wired internet Subscription with an internet service provider for internet access A power socket for AC power supply, or PoE power supply Advanced business AP features require a Cudy AC as the gateway, Cudy AC is coming soon in late 2023.

Mesh features require a Cudy Mesh unit/Mesh router or AC as the gateway with firmware newer than 15.28.
