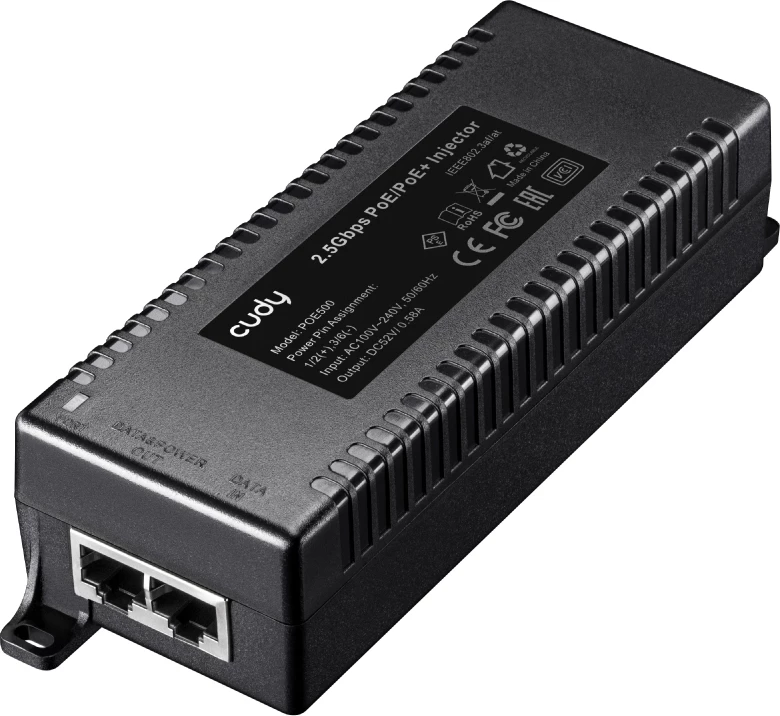

30W 2.5Gbps PoE+/PoE Injector

Specification

Model POE500 Power AC 100-240 V Ethernet 1*10/100/1000M/2.5G Ethernet Port 1*10/100/1000M/2.5G PoE Port Network protocol IEEE802.3 (10Base-T) IEEE802.3u (100Base-TX)

IEEE802.3ab (1000Base-TX)

IEEE802.3bz (2.5GBase-T) IEEE802.3x (Flow control) PoE protocol IEEE802.3af （15.4 W）

IEEE802.3at （25.4 W） Industry Standard EMI: FCC Part 15 CISPR (EN55032) class A EMS: EN61000-4-2 (ESD)、EN61000-4-4 (EFT) Shock: IEC 60068-2-27 Free Fall: IEC 60068-2-32

Vibration: IEC 60068-2-6 Network Medium 10Base-T : Cat3、4、5 or above UTP(≤100m) 100Base-TX : Cat5 or above UTP(≤100m) 1000Base-TX : Cat5 or above UTP(≤100m) Working Environment Working Temperature：0~40°C

Storage Temperature：-40~80°C

Working Humidity ：10%~90%，non-condensing

Storage Temperature：5%~90%，non-condensing Working Height：Maximum10,000 feet Storage heigh：Maximum 10,000 feet ED Indicators PROT Structure Size Product Size：142* 55*40MM

Package Size：210* 160*55MM Product Net-Weight：0.2KG Product Gross-Weight：0.4KG Packing Info MEAS：520*420*340MM Packing Qty：36PCS

Packing weight：15 KG Power Voltage Input Voltage: AC 100-240 V Package List PoE Injector * 1 pair User Manual * 1 pcs Power Cable * 1pcs
