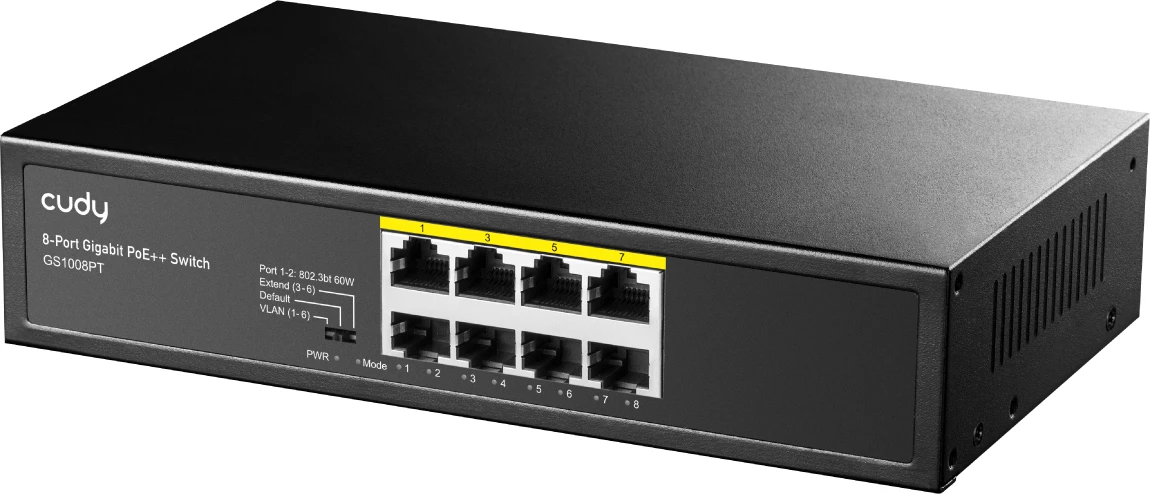

GS1008PT 8-Port Gigabit PoE+ Switch 120W

120 W Power budget & 60 W Maximum One Port

The total PoE power supported by the PoE port is 120 W, and the maximum for port #1~#2 is 60 W. Non-standard PoE devices or normal PoE switches are not burned. Meets IEEE802.3af / at standard.

Rack Mount & Wall Mount & Desktop

● Provide a variety of installation methods for easy deployment in any environment

● Support Wall mount installation

● Support Desktop installation

Plug&Play, Fanless design

Plug and Play, Easy of use.Fanless design for silent operation.Made of high-quality metal case, sturdy and durable with long service life, provide better heat dissipation, suitable for most environment. Pin assignment, Mode A: 1/2(+),3/6(-)

Surveillance

Works with IP Cameras for home and office, small business

VoIP Conference Call

Works with VoIP phones for business conference

Wi-Fi Coverage

Works with WiFi APs for office and business

Specifications

Model GS1008PT Power Input: AC 100-240V, 50/60Hz Ethernet 8 *10/100/1000M PoE Port Switching Capacity 16Gbps Throughput 11.9Mpps Packet Buffer 1.5Mb MAC Address 2K Jumbo Frame 9216bytes Transfer Mode Store and forward MTBF 100000 hour

Network protocol IEEE802.3 (10Base-T)

IEEE802.3u (100Base-TX)

IEEE802.3ab (1000Base-TX)

IEEE802.3x (Flow control)

PoE Protocol IEEE802.3af （15.4W）

IEEE802.3at （30W）

IEEE802.3at （4 Pair 60W） Network Medium 10Base-T : Cat3、4、5 or above UTP(≤100m)

100Base-TX : Cat5 or above UTP(≤100m)

1000Base-TX : Cat5 or aboveUTP(≤100m) Working Environment Working Temperature：-20~50°C

Storage Temperature：-40~85°C

Working Humidity ：10%~90%，non-condensing

Storage Temperature：5%~90%，non-condensing

Working Height：Maximum10,000 feet

Storage heigh：Maximum 10,000 feet LED Indicators PWR（power supply），Mode（DIP），1-8 Green（Link&Data） PWR Lighting：Powered

Un-Light：No Power Mode Lighting：VLAN

Un-Light：Default

Flashing：Extend 1-8 Green Lighting：Connecting

Flashing：Data Transmit

Un-Light：Disconnect DIP Switch VLAN：Port Isolation, 1-6 port is isolated each other, but all can communicate with uplink port 7/8, AI enable

Default: Normal mode, all port can communicate with each other, The port AI mode is closed.

Extend：Extend Mode, 3-6 port support 250 meters transmission on 10Mbps/s ,AI enable

Product Dimension 200mm*118mm*44mm Package Dimension 245mm*190mm*60mm N.W 0.6kg G.W 0.9kg Packing Info Carton MEAS：505*320*402mm

Packing Qty：20 units

Packing Weight：19KG Package List Input Voltage ：AC 100-240 V

Package List Switch 1 pcs, Power cord 1 pcs, User manual 1 pc, Certification 1 pc,
