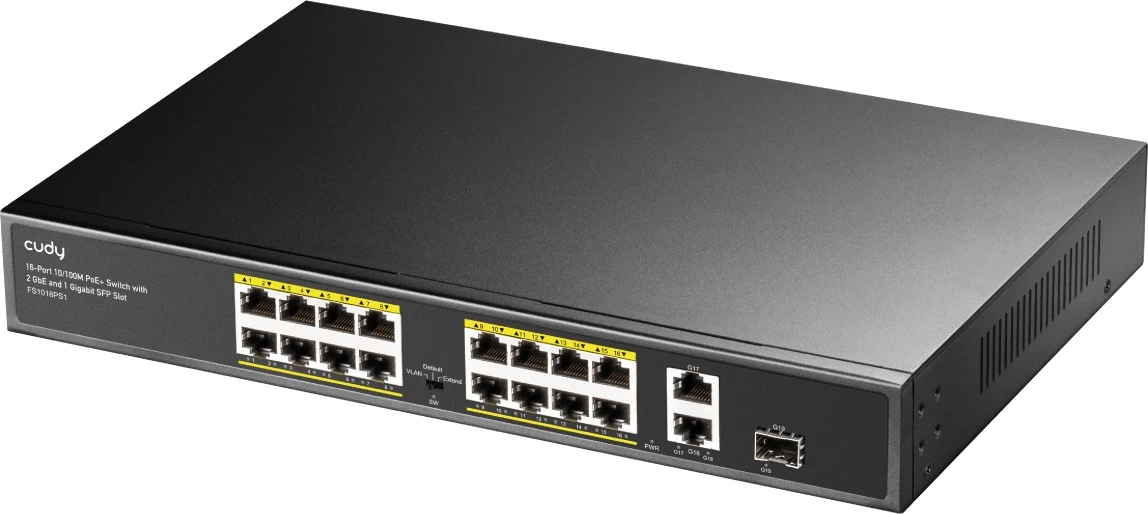

FS1018PS1 16-Port 10/100M PoE+ Switch 200W

200 W Power budget & 30 W Maximum One Port

Supports a total PoE power of 200 W and up to 30 W for one PoE port. Non-standard PoE devices or normal PoE switches are not burned. Meets IEEE802.3af / at standard.

Watchdog guarantees uninterrupted operation of the PoE devices

The PoE watchdog continuously monitors the connection status of remote hosts. If an error is detected on the remote PoE device, the PoE switch immediately restarts the device to bring it back to normal operation.

Plug&Play, Fanless design

Plug and Play, Easy of use.Fanless design for silent operation.Made of high-quality metal case, sturdy and durable with long service life, provide better heat dissipation, suitable for most environment. Pin assignment, Mode A: 1/2(+),3/6(-)

Surveillance

Works with IP Cameras for home and office, small business

VoIP Conference Call

Works with VoIP phones for business conference

Wi-Fi Coverage

Works with WiFi APs for office and business

Specifications

Mode FS1018PS1 Power Power Supply Built-in power supply Voltage Range AC100~240V Consumption 190W for 16 PoE Ethernet Speed 1~16 Port: 10/100/Mbps G17~G18 Port:10/100/1000Mbps G19 Port: SFP 1.25bps Transmission Distance 100Meter(328ft)for RJ-45 The distance is determined by the optical module The optical module is optional Network

Switch Ethenet Standard IEEE 802.3 802.3u 802.3ab 802.3af/at Switching Capacity 7.2G Transfer Rate 14880 pps for 10Mbps 148800 pps for 100Mbps 1488000 pps for 1000Mbps MAC Adsress 4K MAC sddress table Link/ACT On(Green) The port is connecting Blinks The port is receiving or transmitting data. Off The port is notl inked successfully with the device POE On(Oranfe) PD is connected Off No PD is connected or power forwarding fails PoE Pin Assignmnet V+(RJ45 Pin 1, 2) - (RJ45 Pin 3,6) Environment Working Temperature 0~40°C Storage Temperature -40~70°C Humidity Non Condesing 0~85% Mechanical Dimension L*W*H 280*180*44mm Color Gray
