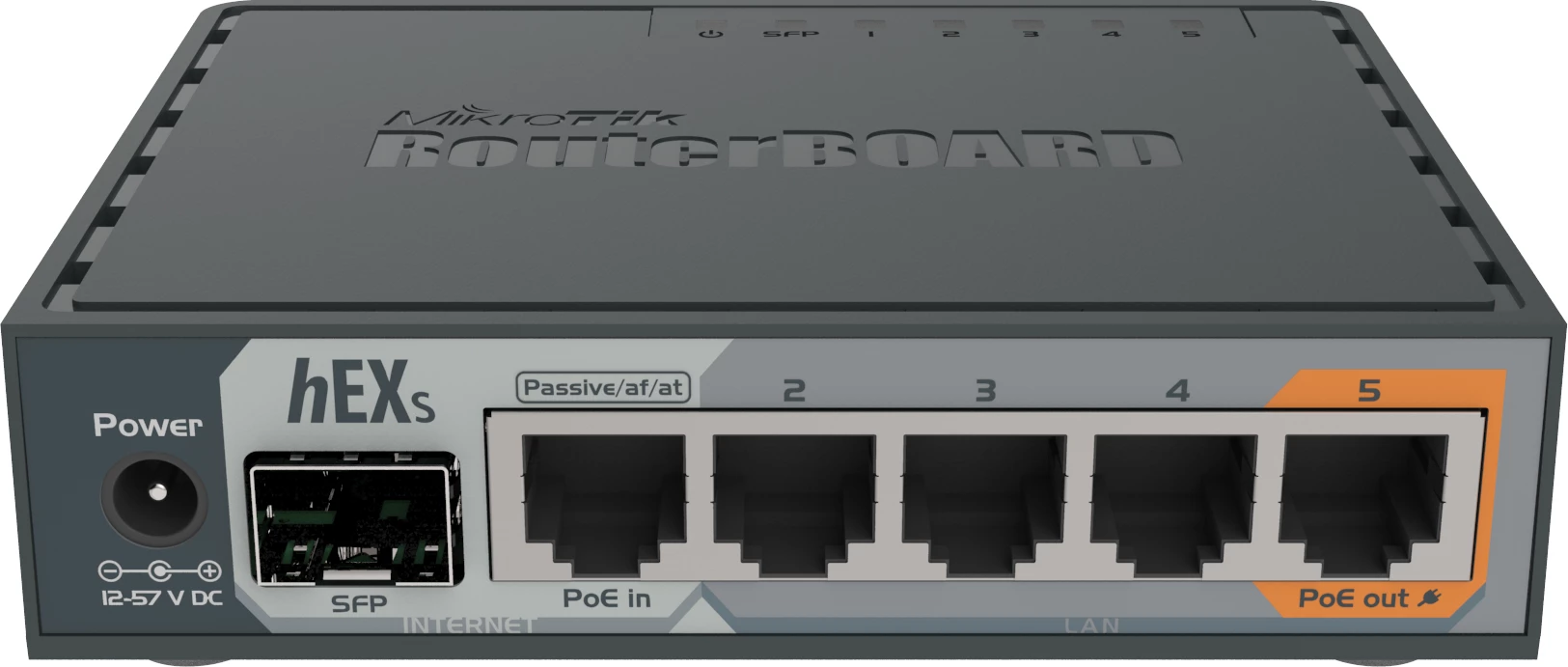

MikroTik hEX S | Router | RB760IGS, 5x RJ45 1000Mb/s, 1x SFP, 1x USB

Specifications

Details Product code RB760iGS Architecture MMIPS CPU MT7621A CPU core count 2 CPU nominal frequency 880 MHz CPU Threads count 4 Switch chip model MT7621A Dimensions 113 x 89 x 28 mm RouterOS license 4 Operating System RouterOS Size of RAM 256 MB Storage size 16 MB Storage type FLASH MTBF Approximately 100'000 hours at 25C Tested ambient temperature -40°C to 70°C IPsec hardware acceleration Yes Suggested price $79.00 Powering

Details Number of DC inputs 2 (DC jack, PoE-IN) DC jack input Voltage 12-57 V Max power consumption 24 W Max power consumption without attachments 6 W Cooling type Passive PoE in 802.3af/at PoE in input Voltage 12-57 V PoE-out

Details PoE-out ports Ether5 PoE out Passive PoE up to 57V Max out per port output (input 18-30 V) 500 mA Max out per port output (input 30-57 V) 500 mA Max total out (A) 500 mA Ethernet

Details 10/100/1000 Ethernet ports 5 Fiber

Details SFP ports 1 Peripherals

Details Memory card type microSD Memory Cards 1 Number of USB ports 1 USB Power Reset Yes USB slot type USB type A Max USB current (A) 1 Other

Details PCB temperature monitor Yes Voltage Monitor Yes Mode button Yes Beeper Yes Certification & Approvals

Details Certification CE, EAC, ROHS IP IP20
