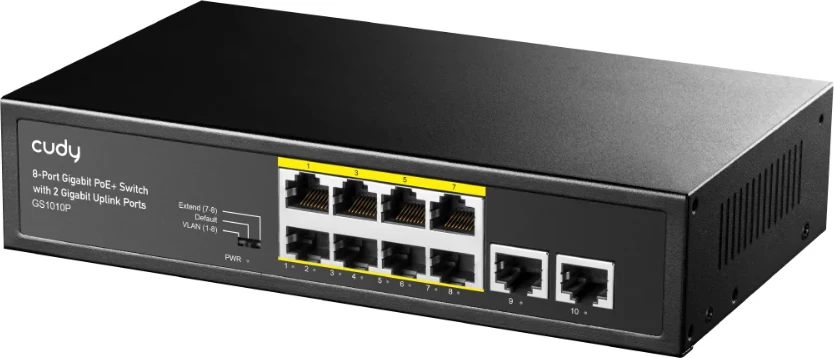

GS1010P 8-Port Gigabit PoE+ Switch with 2 Gigabit Uplink Ports

• Model Version GS1010P 1.0 Protocols 802.3 Protocols 802.3i 10 Mbps over Twisted Pair
• 802.3u 100 Mbps over Twisted Pair
• 802.3ab 1 Gbps over Twisted Pair
• 802.3x Flow Control
• 802.3af PoE
• 802.3at PoE
• Interfaces Physical Buttons VLAN/Default/Extend DIP Switch PoE+ Ethernet Ports 8× GbE Uplink Ethernet Ports 2× GbE Extend Mode Ports #7~#8 VLAN Mode Ports #1~#8 LED Power
• Speed/Link/ACT of Each Ethernet Port
• PoE Status of Each PoE Port
• Power Input AC Inlet Performance Copper Speed and Distance Cat. 3 or higher cable: 100 meters at 10 Mbps
• Cat. 5 or higher cable: 100 meters at 100 Mbps
• Cat. 5e or higher cable: 100 meters at Gigabit
• Cat. 5e or higher cable: 250 meters at 10 Mbps

Copper Speed and Distance Note 250-meter transmission is only available on the Extend Mode ports. Max Forwading Rate 14.88 Mpps Max Switching Capcity 20 Gbps MAC Address Table 2048 Jumbo Frame 2 KB Packet Buffer 448 Kbit Power Power Methods AC AC 100-240V 50/60Hz Idle Power Consumption (W) 10 Max Power Consumption (W) 120 Reliability Grounding Methods Three-Prong Plug Environment Operating Temperature: -10~50 ℃ (14~122 ℉)

Storage Temperature: -40~70 ℃ (-40~158 ℉)

Operating Humidity: 10%~90% non-condensing

• Storage Humidity: 5%~95% non-condensing Mechanical Installation Desktop
• Rackmount via Brackets

Casing Material Metal Dimension 220×150×44 mm

• 8.66×5.91×1.73 inches Product Weight EU: 630 g (22.22 oz.) Package Content Main Product
• Power Cord
• Installation Guide

Ordering Information Retail Package Weight EU: 936 g (22.22 oz.) Carton Net Weight EU: 15.0 kg (33.07 lbs) Carton Gross Weight EU: 15.5 kg (34.17 lbs)
